Observation record.Satnogs-UHF.2020-12-11T02-42-00

Station-sol Satnogs-UHF
Propriétaire N5CNB

Résumé de l'événement

satellite ARMADILLO
date 2020-12-11
time 02:42:00
duration 210
freq 4.37525e+08
culm 66.2253

Waterfall

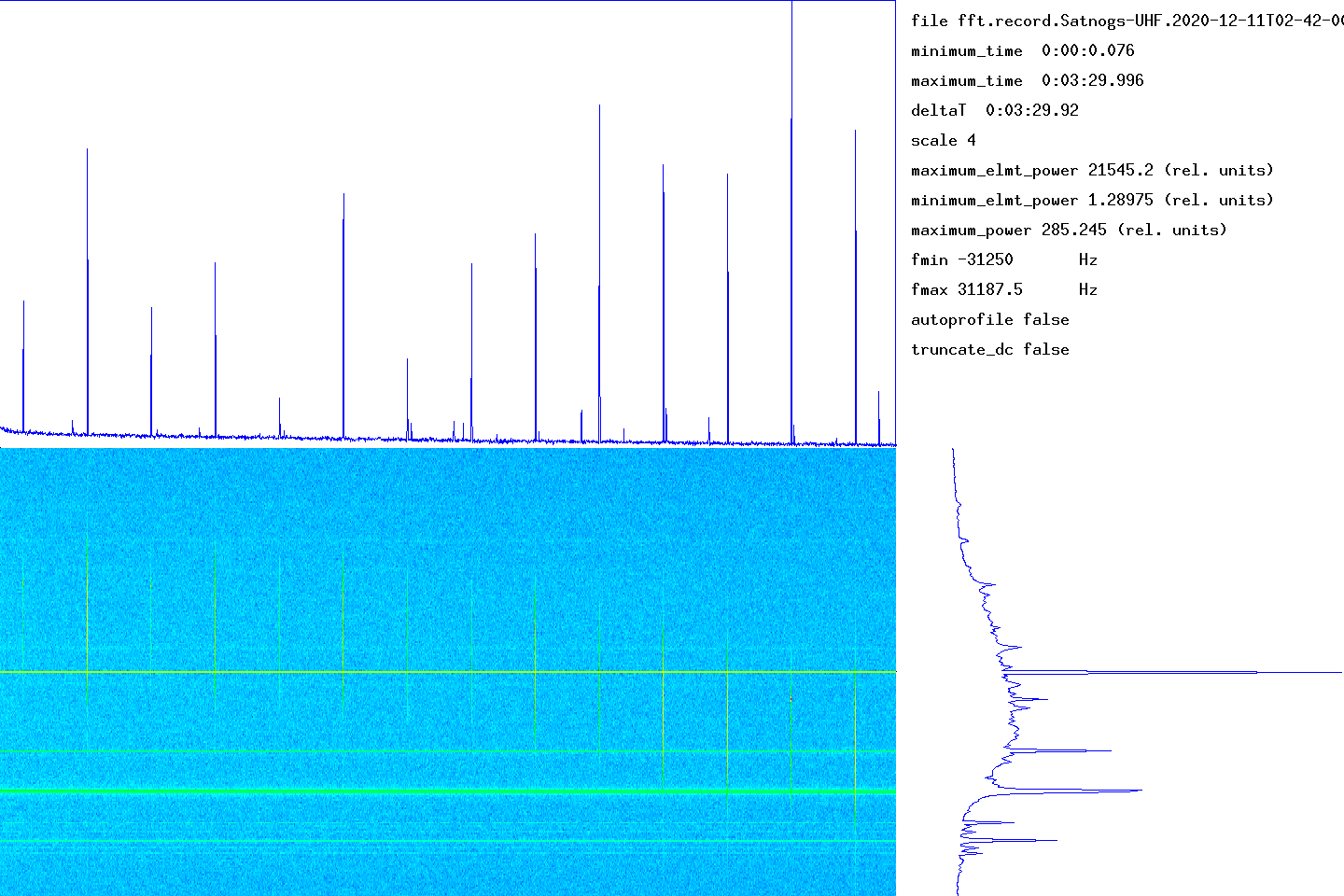

Le graphique en bas à gauche donne le waterfall (temps en abscisse, fréquence en ordonnée). Le graphique en haut donne la puissance du signal intégrée en fréquence en fonction du temps. En bas à droite moyenne des spectres sur tous les temps de mesure (fréquence en ordonnée).

L'étendue en temps de la mesure est donnée dans la partie en haut à droite (minimum_time, maximum_time). L'étendue en fréquence déterminée par le nombre de points utilisés par la transformée de Fourier est donnée par fmin et fmax. Les unités utilisées pour la puissance (ou l'énergie reçue dans chaque intervalle de temps) n'ont pas pu être déterminées.

transitfile record.Satnogs-UHF.2020-12-11T02-42-00.transit

Données complémentaires de la capture

Le début du transit est marqué par un cercle et la fin du transit par un disque.

• paramètres prévus
  filename record.Satnogs-UHF.2020-12-11T02-42-00
  satellite ARMADILLO
  date 2020-12-11
  time 02:42:00
  samp 250000
  duration 210
  freq 4.37525e+08
  culm 66.2253
• paramètres réalisés
  recfile record.Satnogs-UHF.2020-12-11T02-42-00.dat
  start 2020-12-11T02:42:00
  end 2020-12-11T02:45:33
  freq 4.37525e+08
  gain 48
  ns 210
  samp 250000
  nsamp 52500000

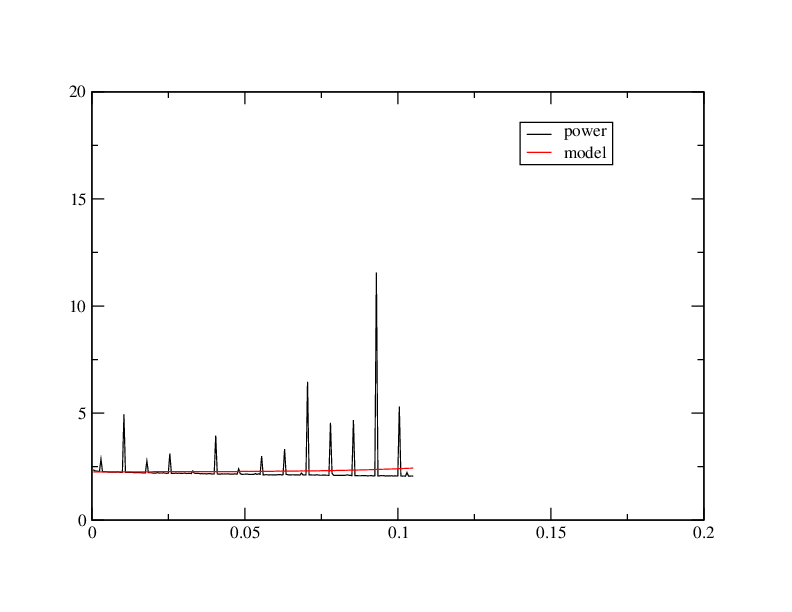

Fit Gaussien

Lorsque l'intensité du signal en fonction du temps suit une loi approximativement Gaussienne, cet outil doit en capturer approximativement les paramètres par ajustement non-linéaire. L'ajustement est réalisé à l'aide de la librairie NLOPT2. Le comportement est indéfini si la loi est quelconque.

abscisses: nombre de giga-samples
ordonnées: sum_20000(I²+Q²)/1e6

• Resultats du fit
  t0 317370000 [ 1269.48 s]
  a 9232220
  sigma -75385800
  y0 2257600

calpower-stats

• Autres statistiques
  longueur.totale 210
  moyenne 2.29806e+06
  somme 4.82592e+08
  max 1.15585e+07
  moyenne.debut.fin 2.45104e+06
  longueur.debug.fin 53
  hauteur.signal 9.1075e+06 [max - moyenne.debut.fin]
  integrale.signal -3.21252e+07 [somme - moyenne.debut.fin*longueur.totale]

Comparaison Doppler calculé et mesuré

Abscisses: fréquence en Hz
Ordonnées: temps en secondes

sumY2 6.05503e+12
sumDy2 4.03043e+12
dfmin -2446.79 sumDy2 2.89129e+12
dtmin 1.94247 sumDy2 2.88063e+12

* Kepler element data for ARMADILLO

name ‘ARMADILLO’
satellite_number 44352
central_object EARTH
ephemeris_type UnknownEphemerisType
epoch_year 20
epoch_day 343.98491766

• Kepler elements
  epoch_julday 2459192.48491766
  Time jd 2459192.48492 < 2020-12-08 23:38:16.0885 UTC >
  inclination 28.5299 deg [28 31'48"]
  right_ascension_of_ascending_node 305.899 deg [20:23:36]
  major_radius 6911.14 km
  eccentricity 0.033161
  periast_argument 29.1665 deg [29 09'59"]
  mean_anomaly 332.7022 deg [332 42'08"]

• Supplemental data
  cc 1.93580671357
  ra 7.14032e+06 [769317]
  rp 6.68196e+06 [310956]
  va 7851.9
  vp 7347.86
  axb 7140.32 x 7136.4
  mammmdt 96.5248
  bstar 6.302
  mean_motion_1st_deriv 0.0003315
  mean_motion_2nd_deriv 0
  mean_motion 15.113 rev/day 0.066168 day/rev
  periapsis_distance 6681.96 km
  apoapsis_distance 7140.32 km
  periapsis_mean_height 310.956 km
  apoapsis_mean_height 769.317 km
  rev_number_at_epoch 8015
  tle_age 1.89809 day

* TLE

ARMADILLO
1 44352U 19036P 20343.98491766 .00033150 00000-0 46302-3 0 9999
2 44352 28.5299 305.8992 0331610 29.1665 332.7022 15.11303485 80158

Analyse spectre

median 8.87651
noise_level_db 8.97032
min 1.10505
max 43.3335
freq_center -3716.1
trig_level_db 10
nbin_rescaling 29.9957
freq_center_trig -2201.74
signal_range_dB 34.3632
theo_range_dB 48.1648 [ 8 bits ]

Post-traitement

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 8c dc e8 3a 31 88 02 00 00 80 ab
  0020: 01 a4 d0 c5 c5 71 73 8d c4 e2 8e ed 44 d2 7a f8
  0030: 3f f4 e4 ce c0 1d f3 42 40 00 a4 40 07 00 2e 00
  0040: 24 01 00 00 01 0f 00 13 00 0f 00 10 00 0c 00 0d
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 4f 68 6d 79 67 6f 64 6f 68 6d 79 67 6f 64
  00b0: 6f 68 6d 79 67 6f 64 21 20 49 27 6d 20 69 6e 20
  00c0: 73 70 61 63 65 21 00 00 00 00 00 00 00 00 00 00
  00d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 c8 dc e8 3a 6d 88 02 00 00 80 ab
  0020: 01 fb 2a c2 c5 70 3f b9 c4 0a ea 00 45 5a c3 15
  0030: 40 8a 70 cc c0 e0 c9 39 40 00 a4 40 07 00 2e 00
  0040: 24 01 00 00 01 0f 00 12 00 0f 00 0f 00 0c 00 0d
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 50 66 66 74 2e 20 57 68 61 74 65 76 65 72
  00b0: 2e 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00c0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 f5 dc e8 3a 9a 88 02 00 00 80 ab
  0020: 01 4f c4 be c5 bc db db c4 8f a8 08 45 69 b9 29
  0030: 40 5a fb c9 c0 ec f4 31 40 00 a4 40 07 00 2e 00
  0040: 24 01 00 00 01 0f 00 12 00 0f 00 0f 00 0c 00 0d
  0050: 00 02 00 06 00 06 00 02 00 09 00 02 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 57 68 61 74 27 73 20 79 6f 75 72 20 66 61
  00b0: 76 6f 72 69 74 65 20 74 68 69 6e 67 20 61 62 6f
  00c0: 75 74 20 73 70 61 63 65 3f 20 4d 69 6e 65 20 69
  00d0: 73 20 73 70 61 63 65 2e 00 00 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 04 dd e8 3a a9 88 02 00 00 80 ab
  0020: 01 7b e8 bc c5 58 ff ec c4 3a 67 0c 45 84 89 33
  0030: 40 4b 97 c8 c0 87 e1 2d 40 00 a4 40 07 00 2e 00
  0040: 24 01 00 00 01 0f 00 12 00 0f 00 0f 00 0c 00 0d
  0050: 00 02 00 06 00 06 00 02 00 09 00 02 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 42 65 74 74 65 72 20 62 75 79 20 61 20 74
  00b0: 65 6c 65 73 63 6f 70 65 2e 20 57 61 6e 6e 61 20
  00c0: 73 65 65 20 6d 65 2e 20 42 75 79 20 61 20 74 65
  00d0: 6c 65 73 63 6f 70 65 2e 20 47 6f 6e 6e 61 20 62
  00e0: 65 20 69 6e 20 73 70 61 63 65 2e 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 13 dd e8 3a b8 88 02 00 00 80 ab
  0020: 01 67 f0 bb c5 0d 87 f5 c4 7f 3e 0e 45 17 67 38
  0030: 40 e3 da c7 c0 8f cd 2b 40 00 a4 40 07 00 2e 00
  0040: 24 01 00 00 01 0f 00 12 00 0f 00 0f 00 0c 00 0d
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 54 68 65 72 65 27 73 20 61 20 73 74 61 72
  00b0: 2e 20 54 68 65 72 65 27 73 20 61 6e 6f 74 68 65
  00c0: 72 20 6f 6e 65 2e 20 53 74 61 72 2e 20 53 74 61
  00d0: 72 20 73 74 61 72 20 73 74 61 72 2e 20 53 74 61
  00e0: 72 2e 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 31 dd e8 3a d6 88 02 00 00 80 ab
  0020: 01 0c e1 b8 c5 74 74 07 c5 30 a1 13 45 63 ce 46
  0030: 40 68 7d c5 c0 10 6c 25 40 00 91 40 07 00 2e 00
  0040: 24 01 00 00 01 0e 00 11 00 0e 00 0f 00 0c 00 0d
  0050: 00 02 00 06 00 06 00 02 00 09 00 02 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 49 74 27 73 20 74 6f 6f 20 62 69 67 2e 20
  00b0: 54 6f 6f 20 62 69 67 2e 20 57 61 6e 6e 61 20 67
  00c0: 6f 20 68 6f 6d 65 2e 20 57 61 6e 6e 61 20 67 6f
  00d0: 20 74 6f 20 65 61 72 74 68 2e 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Credits

Decodage gr-satellites v3.6.0 (Daniel Estevez)

Page N5FXH
