Observation record.Satnogs-UHF.2020-12-14T02-04-00

Station-sol Satnogs-UHF
Propriétaire N5CNB

Résumé de l'événement

satellite ARMADILLO
date 2020-12-14
time 02:04:00
duration 190
freq 4.37525e+08
culm 51.7769

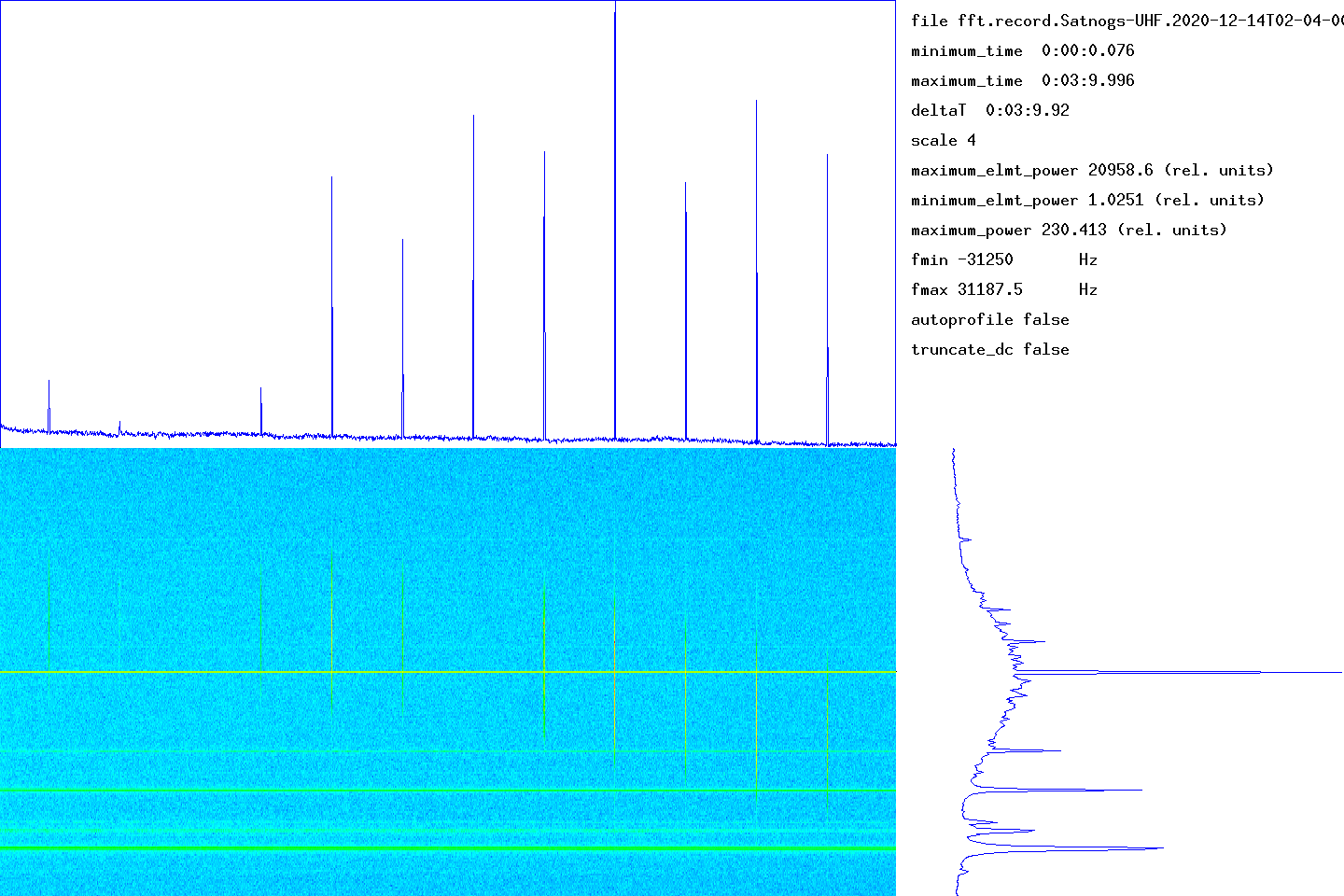

Waterfall

Le graphique en bas à gauche donne le waterfall (temps en abscisse, fréquence en ordonnée). Le graphique en haut donne la puissance du signal intégrée en fréquence en fonction du temps. En bas à droite moyenne des spectres sur tous les temps de mesure (fréquence en ordonnée).

L'étendue en temps de la mesure est donnée dans la partie en haut à droite (minimum_time, maximum_time). L'étendue en fréquence déterminée par le nombre de points utilisés par la transformée de Fourier est donnée par fmin et fmax. Les unités utilisées pour la puissance (ou l'énergie reçue dans chaque intervalle de temps) n'ont pas pu être déterminées.

transitfile record.Satnogs-UHF.2020-12-14T02-04-00.transit

Données complémentaires de la capture

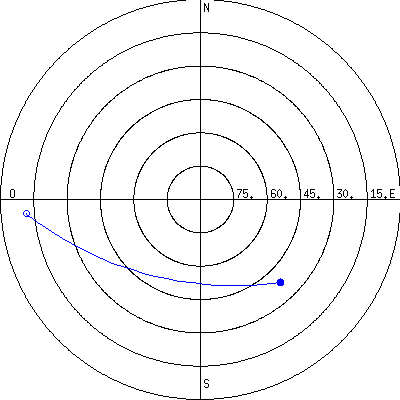

Le début du transit est marqué par un cercle et la fin du transit par un disque.

• paramètres prévus
  filename record.Satnogs-UHF.2020-12-14T02-04-00
  satellite ARMADILLO
  date 2020-12-14
  time 02:04:00
  samp 250000
  duration 190
  freq 4.37525e+08
  culm 51.7769
• paramètres réalisés
  recfile record.Satnogs-UHF.2020-12-14T02-04-00.dat
  start 2020-12-14T02:04:00
  end 2020-12-14T02:07:12
  freq 4.37525e+08
  gain 48
  ns 190
  samp 250000
  nsamp 47500000

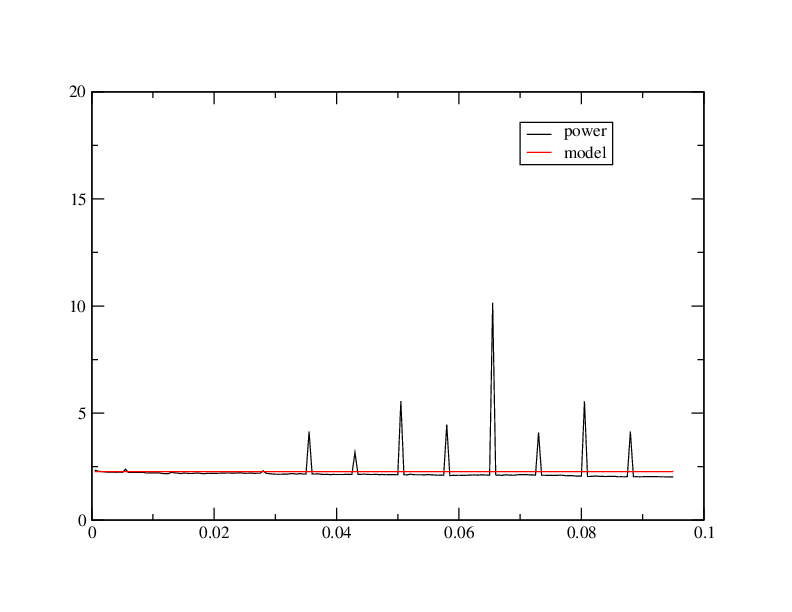

Fit Gaussien

Lorsque l'intensité du signal en fonction du temps suit une loi approximativement Gaussienne, cet outil doit en capturer approximativement les paramètres par ajustement non-linéaire. L'ajustement est réalisé à l'aide de la librairie NLOPT2. Le comportement est indéfini si la loi est quelconque.

abscisses: nombre de giga-samples
ordonnées: sum_20000(I²+Q²)/1e6

• Resultats du fit
  t0 21046400 [ 84.1856 s]
  a 7930080
  sigma -1209.28
  y0 2264400

calpower-stats

• Autres statistiques (de la valeur I²+Q²)
  moyenne 9.05761
  max 40.6085
  moyenne.debut.fin 8.65584
  hauteur.signal 31.9526 [ 15.0451 dB ] (max - moyenne.debut.fin)
  longueur.totale 190
  integrale.signal 76.3374 (somme - moyenne.debut.fin*longueur.totale)

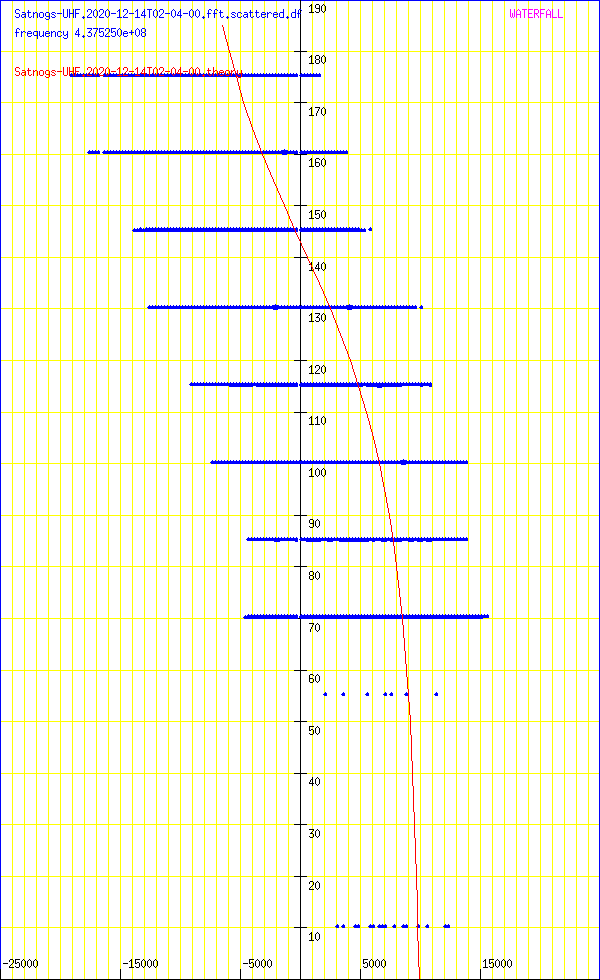

Comparaison Doppler calculé et mesuré

Abscisses: fréquence en Hz
Ordonnées: temps en secondes

sumY2 4.80605e+12
sumDy2 4.90719e+12
dfmin -2938.73 sumDy2 3.26412e+12
dtmin 0.953815 sumDy2 3.26128e+12

* Kepler element data for ARMADILLO

name ‘ARMADILLO’
satellite_number 44352
central_object EARTH
ephemeris_type UnknownEphemerisType
epoch_year 20
epoch_day 347.15475281

• Kepler elements
  epoch_julday 2459195.65475281
  Time jd 2459195.65475 < 2020-12-12 03:42:50.0642 UTC >
  inclination 28.5292 deg [28 31'45"]
  right_ascension_of_ascending_node 284.834 deg [18:59:20]
  major_radius 6910.53 km
  eccentricity 0.0330998
  periast_argument 63.4165 deg [63 24'59"]
  mean_anomaly 299.9954 deg [299 59'43"]

• Supplemental data
  cc 1.9359213892
  ra 7.13927e+06 [768260]
  rp 6.68179e+06 [310786]
  va 7851.77
  vp 7348.64
  axb 7139.27 x 7135.36
  mammmdt 206.223
  bstar 0.84
  mean_motion_1st_deriv 0.0002938
  mean_motion_2nd_deriv 0
  mean_motion 15.115 rev/day 0.0661592 day/rev
  periapsis_distance 6681.79 km
  apoapsis_distance 7139.27 km
  periapsis_mean_height 310.786 km
  apoapsis_mean_height 768.26 km
  rev_number_at_epoch 8063
  tle_age 1.35331 day

* TLE

ARMADILLO
1 44352U 19036P 20347.15475281 .00029380 00000-0 40840-3 0 9997
2 44352 28.5292 284.8336 0330998 63.4165 299.9954 15.11504721 80630

Analyse spectre

median 8.77783
noise_level_db 8.86528
min 0.107675
max 43.2136
freq_center -3493
trig_level_db 10
nbin_rescaling 29.9957
freq_center_trig -2420.5
signal_range_dB 34.3483
theo_range_dB 48.1648 [ 8 bits ]

Post-traitement

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 56 c8 ec 3a 99 1f 01 00 00 30 ab
  0020: 01 55 1b ab c5 1d c0 74 45 99 49 f8 41 36 15 63
  0030: c0 88 22 a9 c0 4d 8d 6e 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0e 00 10 00 0e 00 0e 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 44 6f 20 79 6f 75 20 73 6d 65 6c 6c 20 73
  00b0: 6f 6d 65 74 68 69 6e 67 20 62 75 72 6e 69 6e 67
  00c0: 3f 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 65 c8 ec 3a a8 1f 01 00 00 30 ab
  0020: 01 50 5d ad c5 ad d5 6d 45 cc b9 d8 42 98 91 5a
  0030: c0 2f 24 ac c0 29 6e 6e 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0e 00 10 00 0e 00 0e 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 57 68 61 74 27 73 20 79 6f 75 72 20 66 61
  00b0: 76 6f 72 69 74 65 20 74 68 69 6e 67 20 61 62 6f
  00c0: 75 74 20 73 70 61 63 65 3f 20 4d 69 6e 65 20 69
  00d0: 73 20 73 70 61 63 65 2e 00 00 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 74 c8 ec 3a b7 1f 01 00 00 30 ab
  0020: 01 c6 75 ae c5 8a 55 6a 45 1d fa 12 43 0e 45 56
  0030: c0 35 9d ad c0 a2 51 6e 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0d 00 10 00 0d 00 0e 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 42 65 74 74 65 72 20 62 75 79 20 61 20 74
  00b0: 65 6c 65 73 63 6f 70 65 2e 20 57 61 6e 6e 61 20
  00c0: 73 65 65 20 6d 65 2e 20 42 75 79 20 61 20 74 65
  00d0: 6c 65 73 63 6f 70 65 2e 20 47 6f 6e 6e 61 20 62
  00e0: 65 20 69 6e 20 73 70 61 63 65 2e 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 83 c8 ec 3a c6 1f 01 00 00 30 ab
  0020: 01 7d 96 b0 c5 8d 3c 63 45 7c 39 60 43 0d 93 4d
  0030: c0 c0 80 b0 c0 83 fe 6d 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0d 00 10 00 0d 00 0e 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 54 68 65 72 65 27 73 20 61 20 73 74 61 72
  00b0: 2e 20 54 68 65 72 65 27 73 20 61 6e 6f 74 68 65
  00c0: 72 20 6f 6e 65 2e 20 53 74 61 72 2e 20 53 74 61
  00d0: 72 20 73 74 61 72 20 73 74 61 72 2e 20 53 74 61
  00e0: 72 2e 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 92 c8 ec 3a d5 1f 01 00 00 30 ab
  0020: 01 40 9e b1 c5 45 a5 5f 45 f8 64 83 43 8b 2f 49
  0030: c0 95 ea b1 c0 f3 c7 6d 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0d 00 0f 00 0d 00 0e 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 44 6f 6e 27 74 20 6c 69 6b 65 20 73 70 61
  00b0: 63 65 2e 20 44 6f 6e 27 74 20 6c 69 6b 65 20 73
  00c0: 70 61 63 65 2e 00 00 00 00 00 00 00 00 00 00 00
  00d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 a1 c8 ec 3a e4 1f 01 00 00 30 ab
  0020: 01 9c 9c b3 c5 f9 60 58 45 65 e6 a9 43 69 53 40
  0030: c0 5b ae b4 c0 c8 40 6d 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0d 00 0f 00 0d 00 0e 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 49 74 27 73 20 74 6f 6f 20 62 69 67 2e 20
  00b0: 54 6f 6f 20 62 69 67 2e 20 57 61 6e 6e 61 20 67
  00c0: 6f 20 68 6f 6d 65 2e 20 57 61 6e 6e 61 20 67 6f
  00d0: 20 74 6f 20 65 61 72 74 68 2e 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 b0 c8 ec 3a f3 1f 01 00 00 30 ab
  0020: 01 23 93 b4 c5 2d b4 54 45 30 1e bd 43 16 db 3b
  0030: c0 2d 08 b6 c0 2b f0 6c 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0d 00 0f 00 0d 00 0d 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 48 65 72 65 2c 20 6c 65 74 20 6d 65 20 70
  00b0: 75 74 20 6f 6e 20 73 6f 6d 65 20 61 64 76 65 6e
  00c0: 74 75 72 65 20 6d 75 73 69 63 2e 00 00 00 00 00
  00d0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00e0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

• MESSAGE DEBUG PRINT PDU VERBOSE *
  ((transmitter . 19k2 FSK downlink))
  pdu_length = 272
  contents =
  0000: ae 90 64 b0 b2 a4 60 96 8a 6a 88 a8 ae e1 03 f0
  0010: 08 17 12 fb 01 bf c8 ec 3a 02 20 01 00 00 40 ab
  0020: 01 07 84 b5 c5 b6 ff 50 45 cb 52 d0 43 41 5b 37
  0030: c0 cd 5c b7 c0 cd 96 6c 40 00 a4 40 07 00 2e 00
  0040: 26 01 00 00 01 0d 00 0f 00 0d 00 0d 00 0b 00 0b
  0050: 00 02 00 06 00 06 00 02 00 09 00 04 00 00 00 00
  0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0070: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0080: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0090: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  00a0: 00 00 54 68 69 73 20 61 69 6e 27 74 20 4d 61 72
  00b0: 71 75 69 73 20 6f 66 20 51 75 65 65 6e 73 62 65
  00c0: 72 72 79 20 52 75 6c 65 73 2c 20 73 77 65 65 74
  00d0: 69 65 21 20 50 6f 75 72 20 6f 6e 20 74 68 65 20
  00e0: 6d 75 73 74 61 72 64 21 00 00 00 00 00 00 00 00
  00f0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0100: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

nombre de decodages: 8

Credits

Decodage gr-satellites v3.6.0 (Daniel Estevez)

Page N5FXH

Up
