Observation record.Satnogs-UHF.2020-12-23T18-08-00

Station-sol Satnogs-UHF
Propriétaire N5CNB

Waterfall
ComparaisonDoppler
PostProcessing

Résumé de l'événement

satellite FALCONSAT-3
date 2020-12-23
time 18:08:00
duration 420
freq 4.35103e+08
culm 66.7931

Waterfall

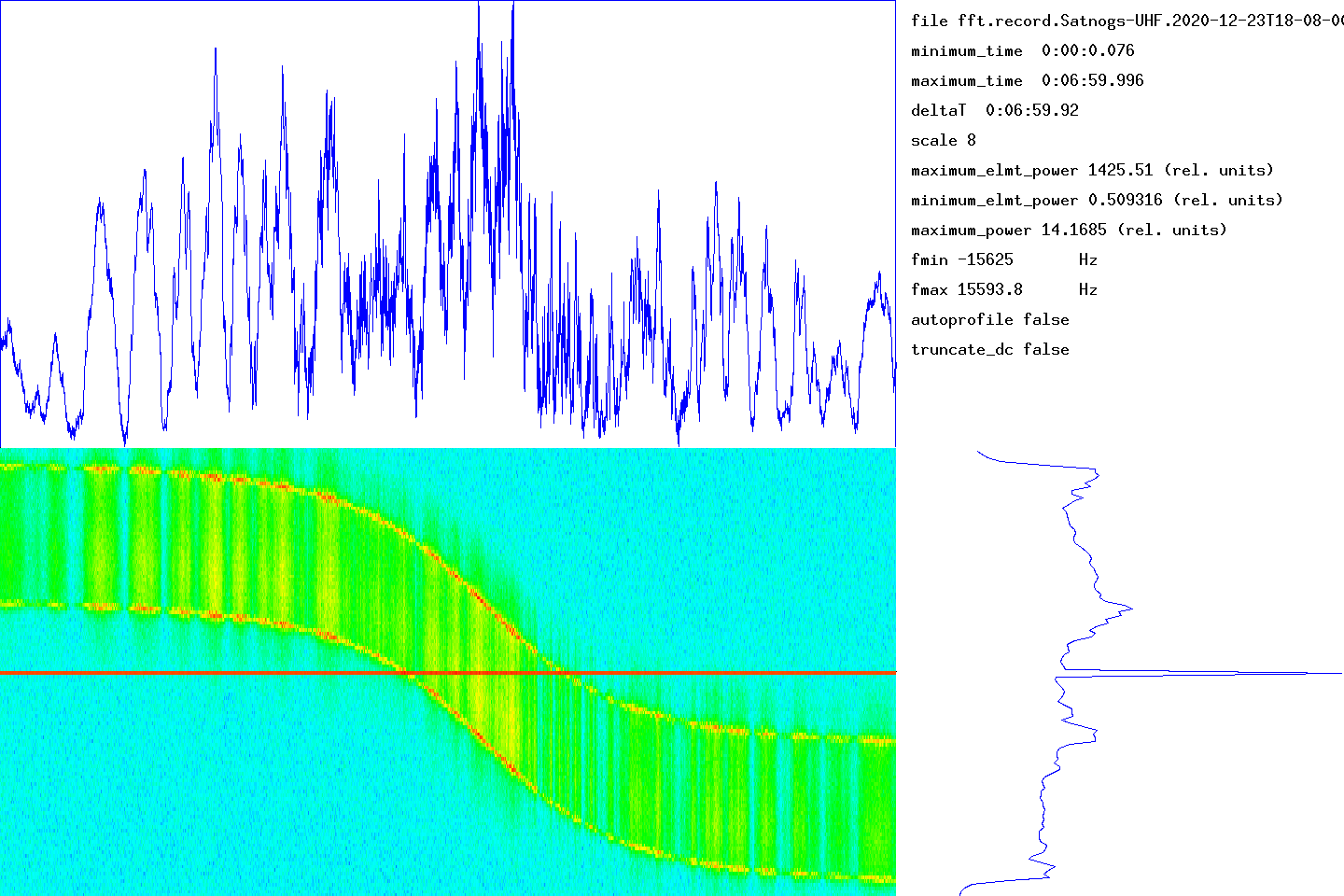

Le graphique en bas à gauche donne le waterfall (temps en abscisse, fréquence en ordonnée). Le graphique en haut donne la puissance du signal intégrée en fréquence en fonction du temps. En bas à droite moyenne des spectres sur tous les temps de mesure (fréquence en ordonnée).

L'étendue en temps de la mesure est donnée dans la partie en haut à droite (minimum_time, maximum_time). L'étendue en fréquence déterminée par le nombre de points utilisés par la transformée de Fourier est donnée par fmin et fmax. Les unités utilisées pour la puissance (ou l'énergie reçue dans chaque intervalle de temps) n'ont pas pu être déterminées.

transitfile record.Satnogs-UHF.2020-12-23T18-08-00.transit

Données complémentaires de la capture

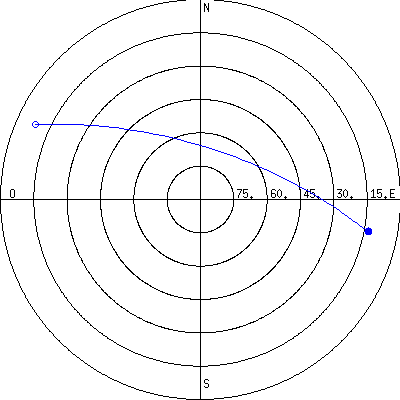

Le début du transit est marqué par un cercle et la fin du transit par un disque.

paramètres prévus
filename record.Satnogs-UHF.2020-12-23T18-08-00
satellite FALCONSAT-3
date 2020-12-23
time 18:08:00
samp 250000
duration 420
freq 4.35103e+08
culm 66.7931
paramètres réalisés
recfile record.Satnogs-UHF.2020-12-23T18-08-00.dat
start 2020-12-23T18:08:00
end 2020-12-23T18:15:03
freq 4.35103e+08
gain 48
ns 420
samp 250000
nsamp 105000000

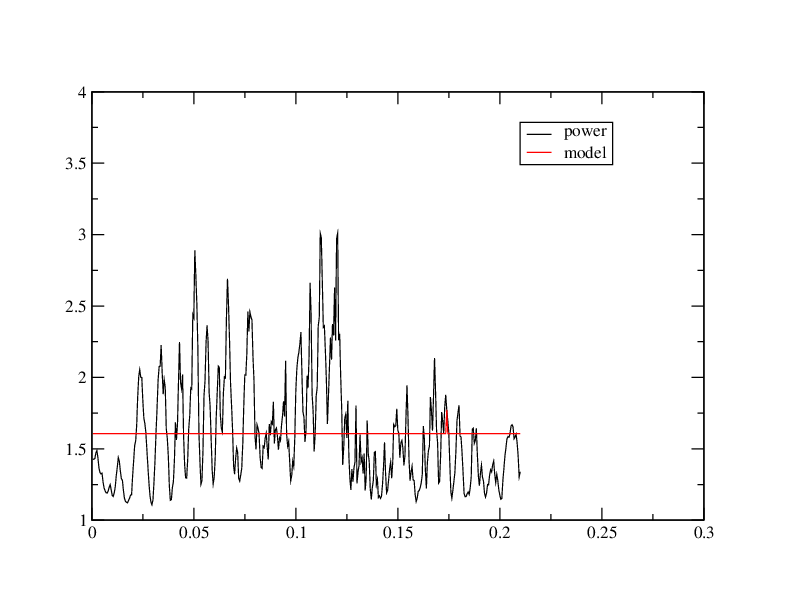

Fit Gaussien

Lorsque l'intensité du signal en fonction du temps suit une loi approximativement Gaussienne, cet outil doit en capturer approximativement les paramètres par ajustement non-linéaire. L'ajustement est réalisé à l'aide de la librairie NLOPT2. Le comportement est indéfini si la loi est quelconque.

abscisses: nombre de giga-samples
ordonnées: sum_20000(I²+Q²)/1e6

Resultats du fit
t0 174030000 [ 696.12 s]
a 1609800
sigma -14062.2
y0 1605740

calpower-stats

Autres statistiques (de la valeur I²+Q²)
moyenne 6.42454
max 12.0363
moyenne.debut.fin 5.43855
hauteur.signal 6.59778 [ 8.19398 dB ] (max - moyenne.debut.fin)
longueur.totale 420
integrale.signal 414.117 (somme - moyenne.debut.fin*longueur.totale)

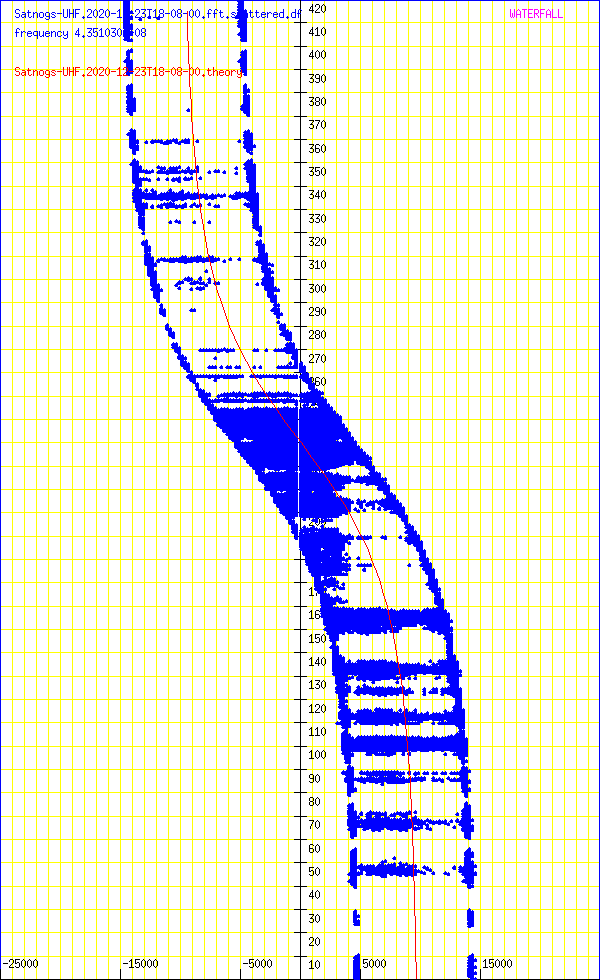

Comparaison Doppler calculé et mesuré


Abscisses: fréquence en Hz
Ordonnées: temps en secondes

sumY2 1.31176e+13
sumDy2 1.17932e+13
dfmin -1297.47 sumDy2 1.0464e+13
dtmin 2.90321 sumDy2 1.03954e+13

* Kepler element data for FALCONSAT-3

name ‘FALCONSAT-3’
satellite_number 30776
central_object EARTH
ephemeris_type UnknownEphemerisType
epoch_year 20
epoch_day 357.76420201

Kepler elements
epoch_julday 2459206.26420201
Time jd 2459206.26420 < 2020-12-22 18:20:27.0053 UTC >
inclination 35.4331 deg [35 25'59"]
right_ascension_of_ascending_node 154.328 deg [10:17:19]
major_radius 6827.66 km
eccentricity 0.0001562
periast_argument 82.4931 deg [82 29'35"]
mean_anomaly 277.5974 deg [277 35'51"]
Supplemental data
cc 1.99968764879
ra 6.82872e+06 [457714]
rp 6.82659e+06 [455581]
va 7643.19
vp 7640.8
axb 6828.72 x 6828.72
mammmdt 141.358
bstar 6.518
mean_motion_1st_deriv 6.524e-05
mean_motion_2nd_deriv 0
mean_motion 15.3911 rev/day 0.0649727 day/rev
periapsis_distance 6826.59 km
apoapsis_distance 6828.72 km
periapsis_mean_height 455.581 km
apoapsis_mean_height 457.714 km
rev_number_at_epoch 76585
tle_age 0.704803 day

* TLE

FALCONSAT-3
1 30776U 07006E 20357.76420201 .00006524 00000-0 16518-3 0 9996
2 30776 35.4331 154.3282 0001562 82.4931 277.5974 15.39108276765854

Analyse spectre

median 5.6225
noise_level_db 5.68309
min -2.93013
max 31.5397
freq_center -3179.26
trig_level_db 10
nbin_rescaling 29.9957
freq_center_trig 1582.8
signal_range_dB 25.8566
theo_range_dB 48.1648 [ 8 bits ]

Post-traitement

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 27
contents =
0000: 84 84 a6 a8 82 a8 00 a0 8c a6 66 40 40 19 03 f0
0010: 4f 70 65 6e 20 41 42 43 44 3a 20

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 22
contents =
0000: a8 98 9a 86 40 40 02 a0 8c a6 66 40 40 03 03 f0
0010: 43 4c 3a 31 32 31

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 62
contents =
0000: 98 a6 a8 82 a8 40 00 a0 8c a6 66 40 40 03 03 f0
0010: 49 20 50 3a 30 78 31 33 41 38 20 6f 3a 30 20 6c
0020: 3a 33 31 33 36 37 20 66 3a 33 31 34 34 39 2c 20
0030: 64 3a 31 20 73 74 3a 34 20 65 3a 36 64 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 27
contents =
0000: a0 84 98 92 a6 a8 00 a0 8c a6 66 40 40 17 03 f0
0010: 50 42 3a 20 45 6d 70 74 79 2e 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 62
contents =
0000: 98 a6 a8 82 a8 40 00 a0 8c a6 66 40 40 03 03 f0
0010: 49 20 50 3a 30 78 31 33 41 38 20 6f 3a 30 20 6c
0020: 3a 33 31 33 36 37 20 66 3a 33 31 34 34 39 2c 20
0030: 64 3a 31 20 73 74 3a 34 20 65 3a 36 64 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 27
contents =
0000: a0 84 98 92 a6 a8 00 a0 8c a6 66 40 40 17 03 f0
0010: 50 42 3a 20 45 6d 70 74 79 2e 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 27
contents =
0000: a0 84 98 92 a6 a8 00 a0 8c a6 66 40 40 17 03 f0
0010: 50 42 3a 20 45 6d 70 74 79 2e 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 24
contents =
0000: 9c 70 9a 90 40 40 00 a0 8c a6 66 40 40 17 03 bb
0010: 4f 4b 20 4e 38 4d 48 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 236
contents =
0000: a8 98 9a 92 40 40 02 a0 8c a6 66 40 40 03 03 f0
0010: 1d 9a e3 5f 00 63 0f 01 59 0e 02 81 0d 03 3c 05
0020: 04 4e 05 05 50 05 06 58 05 07 87 04 08 41 02 09
0030: 39 00 0a 58 07 0b 70 00 0c 61 05 0d 7a 01 0e 14
0040: 06 0f 0f 02 10 33 00 11 1d 00 12 7f 00 13 ff 0f
0050: 14 fe 0f 15 16 06 16 23 06 17 1b 06 18 19 06 19
0060: 38 05 1a 3f 05 1b 24 00 1c 4b 00 1d cb 00 1e 38
0070: 00 1f 0d 00 20 72 06 21 d7 01 22 07 02 23 fb 07
0080: 24 ff 07 25 ff 07 26 3f 04 27 07 04 28 ff 07 29
0090: ff 07 2a 52 05 2b 6d 04 2c 35 04 2d 20 05 2e 89
00a0: 04 2f ff 07 30 82 03 31 65 03 32 fe 0f 33 ff 0f
00b0: 34 08 00 35 01 00 36 02 00 37 00 00 38 02 00 39
00c0: 6d 00 3a ff 0f 3b 3d 02 3c 2f 02 3d ff 0f 3e 0b
00d0: 00 3f 05 00 40 de 02 41 04 00 42 2d 00 43 a8 02
00e0: 44 00 00 45 82 02 46 71 02 47 64 02

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 51
contents =
0000: a8 98 9a a6 40 40 02 a0 8c a6 66 40 40 03 03 f0
0010: 43 30 3a 42 44 20 43 31 3a 30 30 20 43 32 3a 46
0020: 31 20 43 33 3a 35 30 20 43 34 3a 46 31 20 43 35
0030: 3a 30 30

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 25
contents =
0000: a0 84 98 92 a6 a8 00 a0 8c a6 66 40 40 17 03 f0
0010: 50 42 3a 20 4e 38 4d 48 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 271
contents =
0000: a2 a6 a8 40 40 40 02 a0 8c a6 66 40 40 17 03 bb
0010: 02 04 46 00 00 c9 00 00 00 aa 55 01 00 04 04 46
0020: 00 00 02 00 08 41 4c 31 32 31 32 32 33 03 00 03
0030: 20 20 20 04 00 04 3d 1e 00 00 05 00 04 60 8d e2
0040: 5f 06 00 04 01 9a e3 5f 12 00 04 01 9a e3 5f 07
0050: 00 01 00 08 00 01 c9 09 00 02 fb 6f 0a 00 02 a2
0060: 0c 0b 00 02 50 00 00 00 00 11 19 5f 8d e2 5f 00
0070: 00 00 8a 44 00 00 31 00 00 00 0b 36 00 00 6c b1
0080: ce 5f 11 19 63 8d e2 5f 00 00 00 8b 44 00 00 31
0090: 00 00 00 0b 36 00 00 e7 76 d2 5f 11 19 74 93 e2
00a0: 5f 00 00 00 8c 44 00 00 31 00 00 00 0a 36 00 00
00b0: 5f d8 cf 5f 09 11 4c 94 e2 5f 00 00 00 0b 36 00
00c0: 00 32 00 00 00 09 11 ef a2 e2 5f 00 00 00 09 36
00d0: 00 00 32 00 00 00 07 20 63 a6 e2 5f 00 00 02 42
00e0: 58 32 41 42 54 00 96 44 00 00 00 00 00 00 00 00
00f0: 00 00 f4 00 00 00 07 20 6f a6 e2 5f 00 00 02 42
0100: 58 32 41 42 54 00 94 44 00 00 00 00 00 33 62

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 22
contents =
0000: a8 98 9a 86 40 40 02 a0 8c a6 66 40 40 03 03 f0
0010: 43 4c 3a 31 32 31

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 271
contents =
0000: a2 a6 a8 40 40 40 02 a0 8c a6 66 40 40 17 03 bb
0010: 02 04 46 00 00 c9 e8 01 00 32 41 42 54 00 aa 44
0020: 00 00 00 00 00 00 00 00 00 00 f4 00 00 00 07 20
0030: c3 a6 e2 5f 00 00 02 42 58 32 41 42 54 00 a7 44
0040: 00 00 00 00 00 00 00 00 00 00 f4 00 00 00 07 20
0050: c9 a6 e2 5f 00 00 02 42 58 32 41 42 54 00 ca 44
0060: 00 00 00 00 00 00 00 00 00 00 f4 00 00 00 07 20
0070: d2 a6 e2 5f 00 00 02 42 58 32 41 42 54 00 c3 44
0080: 00 00 00 00 00 00 00 00 00 00 f4 00 00 00 07 20
0090: d8 a6 e2 5f 00 00 02 42 58 32 41 42 54 00 bc 44
00a0: 00 00 00 00 00 00 00 00 00 00 f4 00 00 00 11 19
00b0: c6 ad e2 5f 00 00 00 88 44 00 00 31 00 00 00 07
00c0: 36 00 00 d6 92 d2 5f 09 11 8c b1 e2 5f 00 00 00
00d0: 0c 36 00 00 32 00 00 00 07 20 18 b2 e2 5f 00 00
00e0: 02 4c 57 32 45 45 00 00 e2 45 00 00 00 00 00 00
00f0: 00 00 00 00 f4 00 00 00 03 10 19 b2 e2 5f 7d 27
0100: 02 4c 57 32 45 45 00 00 05 0d 55 b2 e2 8e 90

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 81
contents =
0000: a8 92 9a 8a 40 40 02 a0 8c a6 66 40 40 03 03 f0
0010: 50 48 54 3a 20 75 70 74 69 6d 65 20 69 73 20 31
0020: 30 33 33 2f 32 30 3a 35 39 3a 32 39 2e 20 20 54
0030: 69 6d 65 20 69 73 20 57 65 64 20 44 65 63 20 32
0040: 33 20 31 39 3a 32 37 3a 32 38 20 32 30 32 30 0d
0050: 20

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 24
contents =
0000: 9c 70 9a 90 40 40 00 a0 8c a6 66 40 40 17 03 bb
0010: 4f 4b 20 4e 38 4d 48 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 271
contents =
0000: a2 a6 a8 40 40 40 02 a0 8c a6 66 40 40 17 03 bb
0010: 02 04 46 00 00 c9 94 08 00 00 00 07 20 00 d5 e2
0020: 5f 00 00 02 42 58 32 41 42 54 00 4e 45 00 00 00
0030: 00 00 00 00 00 00 00 f4 00 00 00 07 20 06 d5 e2
0040: 5f 00 00 02 42 58 32 41 42 54 00 4d 45 00 00 00
0050: 00 00 00 00 00 00 00 f4 00 00 00 07 20 0c d5 e2
0060: 5f 00 00 02 42 58 32 41 42 54 00 43 45 00 00 00
0070: 00 00 00 00 00 00 00 f4 00 00 00 07 20 13 d5 e2
0080: 5f 00 00 02 42 58 32 41 42 54 00 3a 45 00 00 00
0090: 00 00 00 00 00 00 00 f4 00 00 00 07 20 18 d5 e2
00a0: 5f 00 00 02 42 58 32 41 42 54 00 38 45 00 00 00
00b0: 00 00 00 00 00 00 00 f4 00 00 00 07 20 1e d5 e2
00c0: 5f 00 00 02 42 58 32 41 42 54 00 21 45 00 00 00
00d0: 00 00 00 00 00 00 00 f4 00 00 00 07 20 2c d5 e2
00e0: 5f 00 00 02 42 58 32 41 42 54 00 21 45 00 00 00
00f0: 00 00 00 00 00 00 00 f4 00 00 00 07 20 44 d5 e2
0100: 5f 00 00 02 42 58 32 41 42 54 00 b0 45 b6 90

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 271
contents =
0000: a2 a6 a8 40 40 40 02 a0 8c a6 66 40 40 17 03 bb
0010: 02 04 46 00 00 c9 64 0c 00 54 00 dc 45 00 00 00
0020: 00 00 00 00 00 00 00 f4 00 00 00 09 11 68 dd e2
0030: 5f 00 00 00 03 36 00 00 32 00 00 00 09 11 11 ec
0040: e2 5f 00 00 00 01 36 00 00 32 00 00 00 11 19 04
0050: ef e2 5f 00 00 00 8d 44 00 00 31 00 00 00 00 36
0060: 00 00 40 b3 d2 5f 09 11 ad fa e2 5f 00 00 00 04
0070: 36 00 00 32 00 00 00 09 11 48 09 e3 5f 00 00 00
0080: 02 36 00 00 32 00 00 00 11 19 9d 0f e3 5f 00 00
0090: 00 79 44 00 00 31 00 00 00 00 36 00 00 a3 b6 d2
00a0: 5f 09 11 ea 17 e3 5f 00 00 00 07 36 00 00 32 00
00b0: 00 00 09 11 82 26 e3 5f 00 00 00 05 36 00 00 32
00c0: 00 00 00 11 19 38 30 e3 5f 00 00 00 93 44 00 00
00d0: 31 00 00 00 03 36 00 00 20 fc cf 5f 09 11 1b 35
00e0: e3 5f 00 00 00 04 36 00 00 32 00 00 00 07 20 82
00f0: 3d e3 5f 00 00 02 4e 38 4d 48 00 00 00 05 46 00
0100: 00 00 00 00 00 00 00 00 00 f4 00 00 00 7d aa

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 271
contents =
0000: a2 a6 a8 40 40 40 02 a0 8c a6 66 40 40 17 03 bb
0010: 02 04 46 00 00 c9 58 0d 00 07 20 88 3d e3 5f 00
0020: 00 02 4e 38 4d 48 00 00 00 0b 46 00 00 00 00 00
0030: 00 00 00 00 00 f4 00 00 00 07 20 95 3d e3 5f 00
0040: 00 02 4e 38 4d 48 00 00 00 07 46 00 00 00 00 00
0050: 00 00 00 00 00 f4 00 00 00 07 20 9b 3d e3 5f 00
0060: 00 02 4e 38 4d 48 00 00 00 0a 46 00 00 00 00 00
0070: 00 00 00 00 00 f4 00 00 00 07 20 ab 3d e3 5f 00
0080: 00 02 4e 38 4d 48 00 00 00 08 46 00 00 00 00 00
0090: 00 00 00 00 00 f4 00 00 00 07 20 b3 3d e3 5f 00
00a0: 00 02 4e 38 4d 48 00 00 00 06 46 00 00 00 00 00
00b0: 00 00 00 00 00 f4 00 00 00 07 20 bb 3d e3 5f 00
00c0: 00 02 4e 38 4d 48 00 00 00 03 46 00 00 00 00 00
00d0: 00 00 00 00 00 f4 00 00 00 07 20 c7 3d e3 5f 00
00e0: 00 02 4e 38 4d 48 00 00 00 ed 45 00 00 00 00 00
00f0: 00 00 00 00 00 f4 00 00 00 07 20 cd 3d e3 5f 00
0100: 00 02 4e 38 4d 48 00 00 00 ee 45 00 00 ea 91

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 62
contents =
0000: 98 a6 a8 82 a8 40 00 a0 8c a6 66 40 40 03 03 f0
0010: 49 20 50 3a 30 78 31 33 41 38 20 6f 3a 30 20 6c
0020: 3a 33 31 33 36 37 20 66 3a 33 31 34 34 39 2c 20
0030: 64 3a 31 20 73 74 3a 34 20 65 3a 36 64 0d

MESSAGE DEBUG PRINT PDU VERBOSE *
((transmitter . 9k6 FSK downlink))
pdu_length = 24
contents =
0000: 9c 70 9a 90 40 40 00 a0 8c a6 66 40 40 17 03 bb
0010: 4f 4b 20 4e 38 4d 48 0d

nombre de decodages: 21

Credits

Decodage gr-satellites v3.6.0 (Daniel Estevez)

Page N5FXH
