Observation record.Satnogs-VHF.2021-06-09T01-15-00

Ground-station Satnogs-VHF
Owner N5CNB

Waterfall
DopplerComparaison
PostProcessing

Résumé de l'événement

satellite NOAA_19
date 2021-06-09
time 01:15:00
duration 630
freq 1.371e+08
culm 51.634

Waterfall

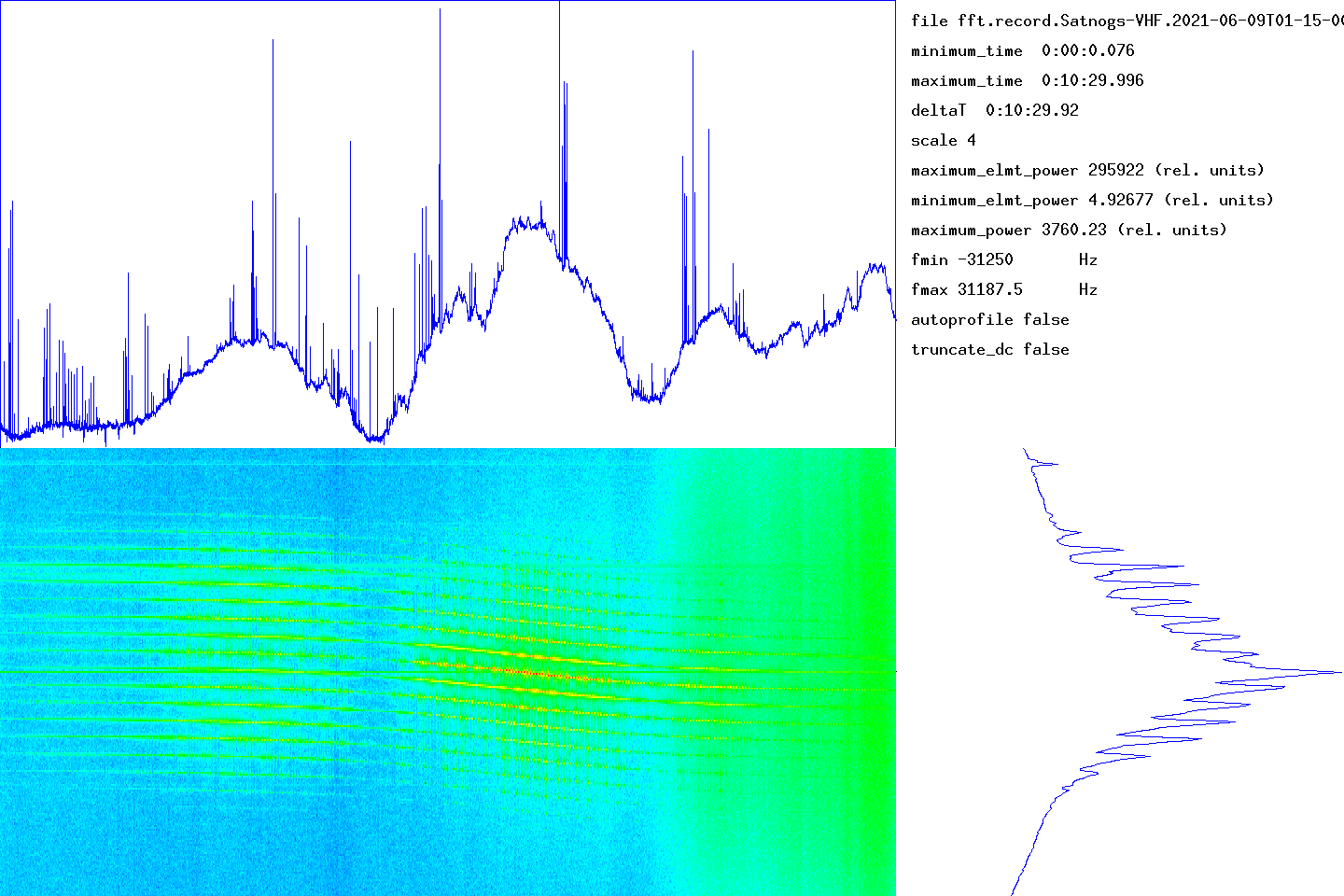

The graph at the bottom left gives the waterfall (time on the abscissa, frequency on the ordinate). The graph at the top gives the integrated signal strength in frequency as a function of time. At the bottom right, the average of the spectra over all the measurement times (frequency on the ordinate).

The time range of the measurement is given in the top right part (minimum_time, maximum_time). The frequency range determined by the number of points used by the Fourier transform is given by fmin and fmax. The units used for power (or the energy received in each time slot) could not be determined.

transitfile record.Satnogs-VHF.2021-06-09T01-15-00.transit

Additional capture data

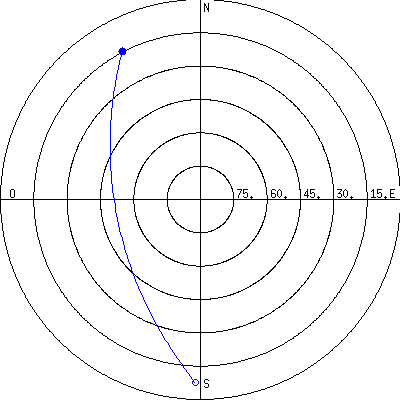

The beginning of the transit is marked by a circle and the end of the transit by a disc.

• paramètres prévus
  filename record.Satnogs-VHF.2021-06-09T01-15-00
  satellite NOAA_19
  date 2021-06-09
  time 01:15:00
  samp 250000
  duration 630
  freq 1.371e+08
  culm 51.634
• paramètres réalisés
  recfile record.Satnogs-VHF.2021-06-09T01-15-00.dat
  start 2021-06-09T01:15:00
  end 2021-06-09T01:25:32
  freq 1.371e+08
  gain 50
  ns 630
  samp 250000
  nsamp 157500000

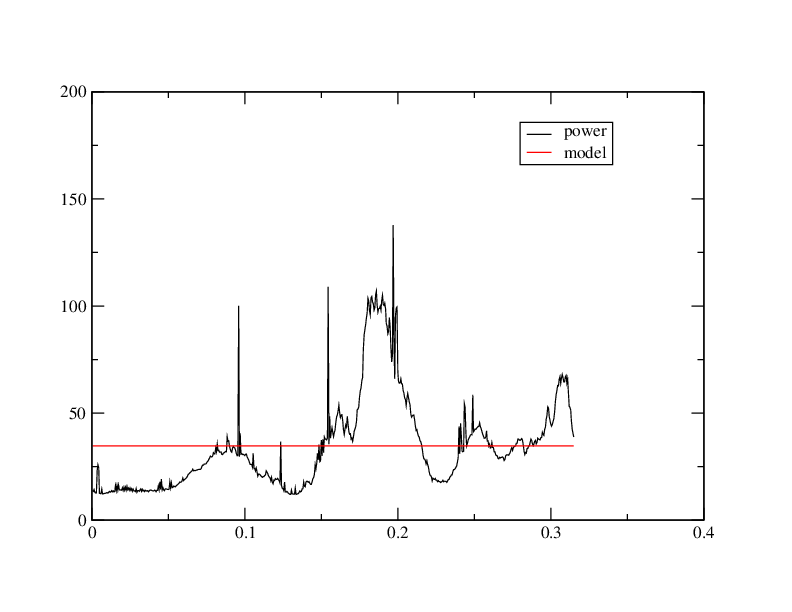

Gaussian fit

When the intensity of the signal as a function of time follows an approximately Gaussian law, this tool must capture approximately the parameters by non-linear adjustment. The adjustment is carried out using the NLOPT2 library. The behavior is undefined if the law is arbitrary.

abscisses: giga-samples name ordinates: sum_20000(I²+Q²)/1e6

• Resultats du fit
  t0 -3279260000000 [ -13117040 s]
  a 68125200
  sigma -48246500000000
  y0 -33303900

calpower-stats

• Autres statistiques (de la valeur I²+Q²)
  moyenne 138.656
  max 550.93
  moyenne.debut.fin 122.068
  hauteur.signal 428.862 [ 26.3232 dB ] (max - moyenne.debut.fin)
  longueur.totale 630
  integrale.signal 10450.4 (somme - moyenne.debut.fin*longueur.totale)

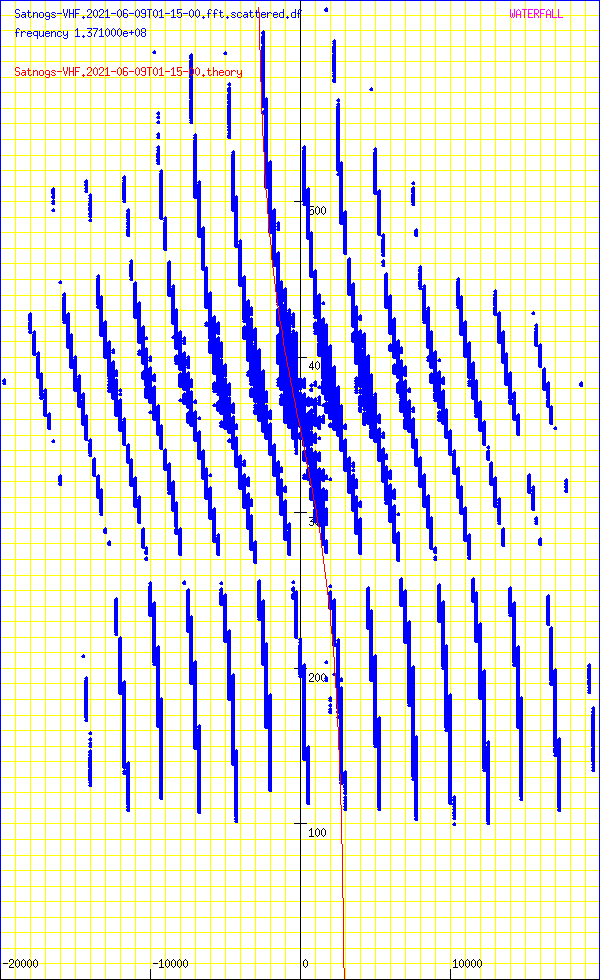

Calculated and measured Doppler comparison

Abscissa: frequency in Hz
Ordinates: time in seconds

sumY2 9.74689e+13
sumDy2 9.78206e+13
dfmin 156.932 sumDy2 9.76957e+13
dtmin 9.56205 sumDy2 9.75553e+13

* Kepler element data for NOAA 19

name ‘NOAA_19’
satellite_number 33591
central_object EARTH
ephemeris_type UnknownEphemerisType
epoch_year 21
epoch_day 159.05877398

• Kepler elements
  epoch_julday 2459373.55877398
  Time jd 2459373.55877 < 2021-06-08 01:24:38.0071 UTC >
  inclination 99.1833 deg [99 11'00"]
  right_ascension_of_ascending_node 179.532 deg [11:58:08]
  major_radius 7229.88 km
  eccentricity 0.0014399
  periast_argument 155.051 deg [155 03'04"]
  mean_anomaly 205.1359 deg [205 08'09"]

• Supplemental data
  cc 1.99712434066
  ra 7.24029e+06 [869280]
  rp 7.21947e+06 [848459]
  va 7437.08
  vp 7415.7
  axb 7240.29 x 7240.28
  mammmdt 326.629
  bstar 0.839
  mean_motion_1st_deriv 9.8e-07
  mean_motion_2nd_deriv 0
  mean_motion 14.1247 rev/day 0.0707978 day/rev
  periapsis_distance 7219.47 km
  apoapsis_distance 7240.29 km
  periapsis_mean_height 848.459 km
  apoapsis_mean_height 869.28 km
  rev_number_at_epoch 63559
  tle_age 0.678564 day

* TLE

NOAA 19
1 33591U 09005A 21159.05877398 .00000098 00000-0 78390-4 0 9998
2 33591 99.1833 179.5319 0014399 155.0510 205.1359 14.12473177635594

Spectrum analysis

median 16.3314
noise_level_db 16.2922
min 6.92562
max 54.7118
freq_center 2581.39
trig_level_db 10
nbin_rescaling 29.9957
freq_center_trig 731.707
signal_range_dB 38.4196
theo_range_dB 48.1648 [ 8 bits ]

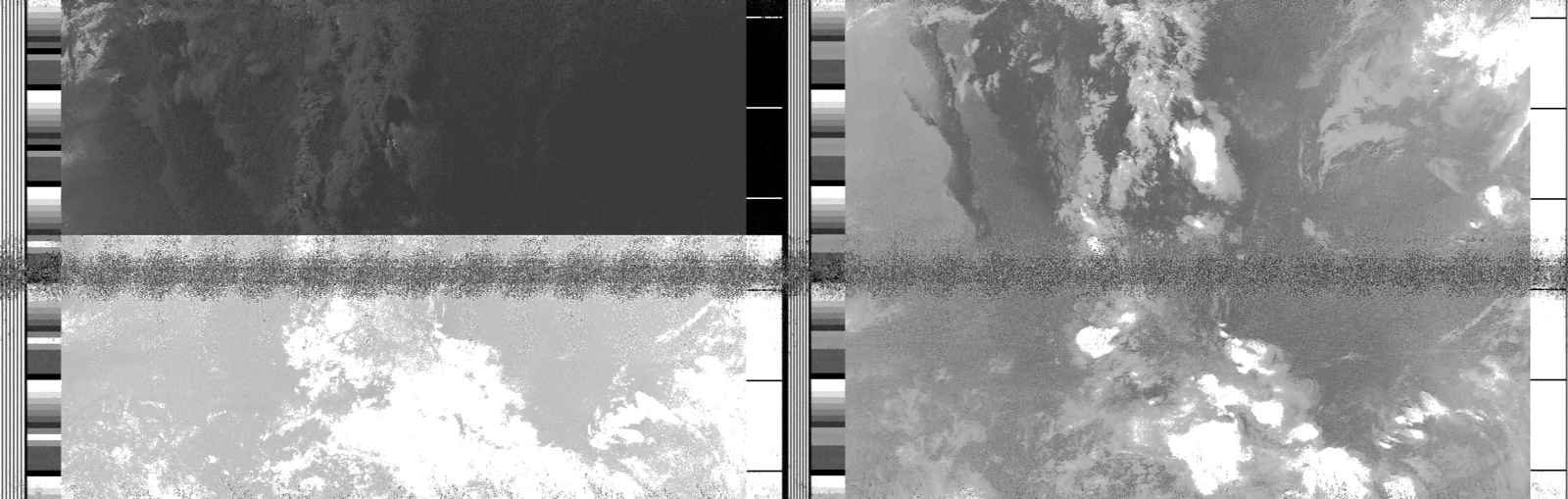

Post-processing

Credits

Carte meteo WXTOIMG RESTORED v.2.10.11 https://wxtoimgrestored.xyz/
